551 three-axis desktop automatic dispensing manipulator-excellent type
Classification:
Product Details
- Product Description
-
551 automatic dispensing machine adopts high-strength equipment body and CNC integrated processing, which effectively ensures the verticality of XYZ and improves the processing accuracy of the equipment. Its dispensing stroke can reach XY:500*500mm, and its Z-axis depth is 100mm. It is equipped with a teaching box independently developed by our company and can be programmed and used without matching a computer.
Technical parameters:Product Model551Number of control axesTriaxialProcessing range X-axis500mmProcessing range Y axis500mmProcessing range Z-axis100mmRated speedXY/500mm/s ，Z/300/sRepeat accuracy±0.015mmDrive modeStepping synchronous belt precision linear guideControl modePoint-to-point, straight line and circular arc difference compensationMotion interpolation function3-dimensional linear interpolation, 3-dimensional graph/circular interpolationFile Storage SpaceHandheld teaching box 128M, offline card 16MInput Output22 general inputs, 18 outputsExternal connection modeHandheld box can be used as USB master and slave, offline card can be used as USB slaveZ-axis suspension weight3KGY axis bearing weight15KGInput powerAC110V/220V 50Hz/60HzPower350Overall dimensionXYZ：680*685.5*642mmWhole machine weight62KGOperating environment temperature/humidity0-40 ℃ ,20-80% (no frost)

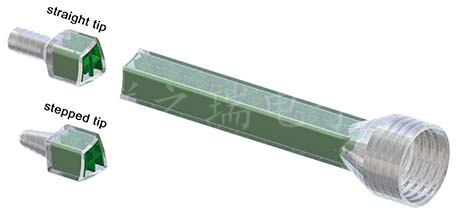

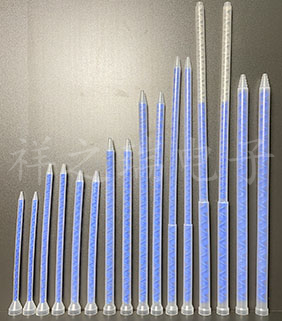

keyword：Mixing tube
